Learning API - Domain model and concepts

[#1]

• Domain model
• Concepts
• Employees
• Users
• Organization units
• Job profiles
• Companies
• Contract types
• Employment types
• Cost centers
• Classifications
• Locations
• Salary scales
• Job families
• File upload

The Learning API is intended for Learning Management systems and allows you to:

• Read employees and organizational structures from Youforce to update the learning system

• Upload certificates to the Youforce Personal File system of the customer

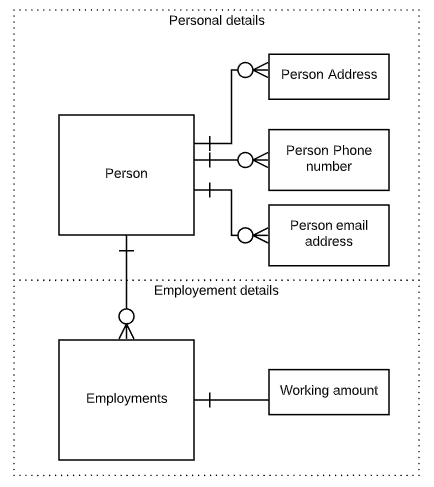

Domain model

Concepts

Employees

The object employee contains all personal and employment details of an employee.

Object attributes

An employee is a person with one or more employments.

Attributes person details

Attribute	Description
id	Unique id for the Person row within the tenant
personCode	The logical person code of the employee
Initials	The initials of the employee.
firstNames	The official given names of the employee as stored in the HR Core system
KnowAs	The name which is used by the employee as his first name
lastNameAtBirth	The last name at birth of the employee. Also known as the family name
lastNameAtBirthPrefix	The prefix of the last name at birth
lastName	The last which is currently used  by the employee as his last name
lastNamePrefix	The prefix of the last name as used currently
nameAssembleOrder	Code of the assemble order that the core system uses for the last name. The assembly order is depending on the core system and the logic behind it.
partnerName	The partner last name
partnerNamePrefix	The prefix of the partner last name
titlePrefix	The formal title which will be used as a prefix before the name like Doctor, Professor, et cetera
titleSuffix	The formal title which will be used as postfix after the name like MSc or Master of Science
gender	Gender of the person. Supported values are Male / Female. Note: other type of genders will be shown as Not Known
birthDate	Date of birth
deceased	Indicated if the employee deceased
UserUID	Digital Identity of the user from the portal
emailAddresses type address	List of the addresses of the employee.  The fields are: type like Business, Private, et cetera address
Addresses type street houseNumber houseNumberAdditional locationDesignation postalCode city region country	List of the addresses of the employee.  The fields are: type like Home, Post, et cetera street name house number house number additional Location designation Postal code City Region Country code
phoneNumbers type number	list of phone numbers of the employee type like Business, Home, Mobile, et cetera number
communicationLanguage	Communication language

Attribute employment details

Attribute	Description
employeeID	Technical and unique id. the Id is unique within the entity and tenant.
employeeCode	Code of the employee
employmentCode	Logical code of the employment
company	Unique (alphanumeric) identifier of the company  with which the contract is concluded
hireDate	The hire date of the employment
dischargeDate	The end date or discharge date of the employment.
originalHireDate	The first hire date or original hire date of an employee within the organization.
employmentType	Type of employment with a short name for type like Internal employee, contractor, "Wachtgelder"
jobProfile	job profile code of the employment The job profile is a code that refers to the entity job profile
organizationUnit	organization unit of employment. The organization unit is a code that refers to the entity organization units
workingAmount amountOfWork unitOfWork periodOfWork	Work amount of employment.  The amount of work Unit of work that specifies the amount of work like "hours", "days", et cetera Period of work like "week" or "month"
contractType	Contract type of the employee. It is the code that refers to the entity contract type.
costCenter	Main cost center associated with the employee. It is the code that refers to the entity cost center.
classification	Classification of the employee. It is the code that refers to the entity Classification.
location	Location of the employee. It is the code that refers to the entity location.
salaryScale	Salary scale of the employee. It is the code that refers to the entity salary scale

Data mapping

Attributes person details

attribute	HR Core Business
personId	Technical id of the employee in HRCB
personCode	7014 - Uniek Persoonlijk ID (UPI) (If it is not filled in then the Medewerkercode - 22)
Initials	25 - Voorletters
firstNames	51 - Voornamen
KnowAs	165 - Roepnaam
lastNameAtBirth	24 - Achternaam
lastNameAtBirthPrefix	26 - Voorvoegsel
lastName	524 - Opgemaakte naam aanhef Note: In HRCB this field is combination of the last name and the last name prefix
lastNamePrefix	#NA
nameAssembleOrder	28 - Eigennaam code
partnerName	27 - Naam Partner
partnerNamePrefix	166 - Voorvoegsel Partner
titlePrefix	94 - Titel voor
titleSuffix	95 - Titel na
gender	36 - Geslacht Mapping details: 1 or Man → Male 2, Vrouw, Woman → Female Other values will shown as Not Known
birthDate	35 - geboorte datum
deceased	Based on the date of deceased. If the employee is deceased the boolean is set to True 10302568 - Datum overlijden
UserUID	10523564 - PING ID
emailAddresses type address	Business : 7212 - E-mailadres Prive: 7213 - E-mailadres Prive
Addresses type street houseNumber houseNumberAdditional locationDesignation postalCode city region country	Home: 391 - straat 392 - Huisnummer 393 - Huisnummer toevoeging 8099 - Locatie omschrijving 394 - Postcode 395 - Woonplaats 34 - Woonland   10205283 Regionaam Buitenland  Postal: 7572 - Straat Postadres 7573 - huisnummer Postadres 7574 - Huisnummer toev. adres 8100 Locatie omsch Postadres 7575 - Postcode Postadres 7576 - Plaats Postadres 7571 - Land 8101 Regionaam Buitenland
phoneNumbers type number	Home : 7376 - Telefoonnummer prive Mobile : 7377 - Telefoonnummer mobiel Business : 7374 - Telefoonnummer intern
addresses
communicationLanguage	10

Attribute employment details

Attribute	HR Core Business
employeeID	technical ID of the employee in HRCB
employeeCode	22 - Medewerkercode
employmentCode	#NA
company	18 - company code
hireDate	39 - Datum indienst
dischargeDate	10520479 - Geplande laatste datum indienst
originalHireDate	308 - Datum indienst organisatie
employmentType	7393 - Type Medewerker
jobProfile	97 - functie
organizationUnit	6000 - Organisatorische eenheid
workingAmount amountOfWork unitOfWork periodOfWork	amount of work = 465 - Uren periode    perodOfWork = 463 - Dagen / uren per  *HRCB supports only amount of work in "hours" parttimePercentage is not available
contractType	contract type = 10204687
costCenter	cost center = 53
classification	classification = 474
location	location = 75
salaryScale	salaryScale = 10300574

Users

The object User contains the User Identity for Single Sign-On. The User Identity is stored in the User Management System of the Youforce portal and can be used to support Single Sign-On.

For HR Core Business the User Identity is already part of the employee endpoint.

Object attributes

attribute	example	description
id	c7e230db-2a7f-4ef0-ad1d-9d30e7d94a2f	User Identity of the employee for Single Sign On.
sourceId	XX123456	not relevant within the learning domain
identityId	null	not relevant within the learning domain

Organization units

The object Organization Units will provide all HR Data regarding the organization structure, like business Unit, department. Next to that, it describes in what way these are related to each other. Based on the organizational structure it’s clear ‘which' department is responsible for 'what’.

Object attributes

The organization unit and the role assignment how the organization is structured and who is responsible in which role.

Attributes Organization Unit

Attribute	Description
id	Unique Id of the organization Unit
shortName	Logical code of the organization Unit
fullName	Logical name of the organization Unit
parentOrgUnit	Id of the parent organization Unit In some core systems this relation can changed in during the timeline of an organization Unit.
organizationUnitType	Type of organization Unit
manager	Manager of the organization unit* *Only for HR Core Business. For HR Core Beaufort the manager is part of the role assignment
managerPersonCode	Person code of the manager

Attributes Role Assignment

Attribute	Description
id	Unique Id of the record
OrganizationUnitId	Id of the organization unit the role assignment is effective for
roleCode	Code of the role. For instance the role manager is identified with the role code MGR.
personCode	Person who have this role for the specific organisation unit. The person code is a reference to the Person code in the employee
personId	Person who have this role for the specific organisation. The person id is a reference to the Person id in the employee table
startDate	Start date from which the role assignment is valid for that employee
endDate	End date from which the role assignment is valid for that employee

Data mapping

Attributes Organization Unit

Attribute	HR Core Business
id	Technical id from HRCB
shortName	548 - code OE
fullName	549 - Naam OE
parentOrgUnit	technical id of the parent Org unit
organizationUnitType	#N/A
managerId	7137 - manager

Attributes Role Assignment

Attribute	HR Core Business
id	Technical id from HRCB
OrganizationUnitId	548 - code OE
roleCode	549 - Naam OE
personCode	#N/A
personId	Reference to the Person Id
startDate	#N/A
endDate	#N/A

Job profiles

Object attributes

The object job profile contains the following attributes.

Attribute	Description
shortName	short name of the job profile
fullName	full name of the job profile
jobFamily	job family to which the job belongs.

Data mapping

Attribute	HR Core Business
shortName	Functie code
fullName	functie naam
jobFamily	Job family

Companies

Object attributes

The object company contains the following attributes.

Attribute	Description
id	identifier of the company
code	company code
fullName	full name of the company
ValidFrom	Start date of the version of the company
ValidUntil	End date of the version of the company

Data mapping

Attribute	HR Core Business (Supported level: Client)
id	mutkey
code	company code
fullName	company name

Contract types

Object attributes

The object contract type contains the following attributes.

Attribute	Description
code	contract type code
fullName	full name of the contract type
ValidFrom	Start date of the version
ValidUntil	End date of the version

Data mapping

Attribute	HR Core Business (Supported level: System)
code	contract type code
fullName	contract type name

Employment types

Object attributes

The object employment type contains the following attributes.

Attribute	Description
code	employment type code
fullName	full name of the employment type
ValidFrom	Start date of the version
ValidUntil	End date of the version

Data mapping

Attribute	HR Core Business (Supported level: Client)
code	employment type code
fullName	employment type name

Cost centers

Object attributes

The object cost center contains the following attributes.

Attribute	Description
code	cost center type code
fullName	full name of the cost center
ValidFrom	Start date of the version
ValidUntil	End date of the version

Data mapping

Attribute	HR Core Business (Supported level: Client)
code	cost center code
fullName	cost center name

Classifications

Object attributes

The object classification contains the following attributes.

Attribute	Description
code	classification code
fullName	full name of the classification
ValidFrom	Start date of the version
ValidUntil	End date of the version

Data mapping

Attribute	HR Core Business (Supported level: Client)
code	classification code
fullName	classification name

Locations

Object attributes

The object location contains the following attributes.

Attribute	Description
code	location code
fullName	full name of the location
ValidFrom	Start date of the version
ValidUntil	End date of the version

Data mapping

Attribute	HR Core Business (Supported level: Client)
code	location code
fullName	location name

Salary scales

Object attributes

The object salary scale contains the following attributes.

Attribute	Description
code	salary scale code
fullName	full name of the salary scale
ValidFrom	Start date of the version
ValidUntil	End date of the version

Data mapping

Attribute	HR Core Business (Supported level: Client)
code	salary scale code
fullName	salary scale name

Job families

Object attributes

The object job family contains the following attributes.

Attribute	Description
code	job family code
fullName	full name of the job family
ValidFrom	Start date of the version
ValidUntil	End date of the version

Data mapping

Attribute	HR Core Business (Supported level: System)
code	job family code
fullName	job family name

File upload

With the documents endpoint files, certificates and other documents can be uploaded for an employee to the Visma Personal File System (Personeelsdossier).

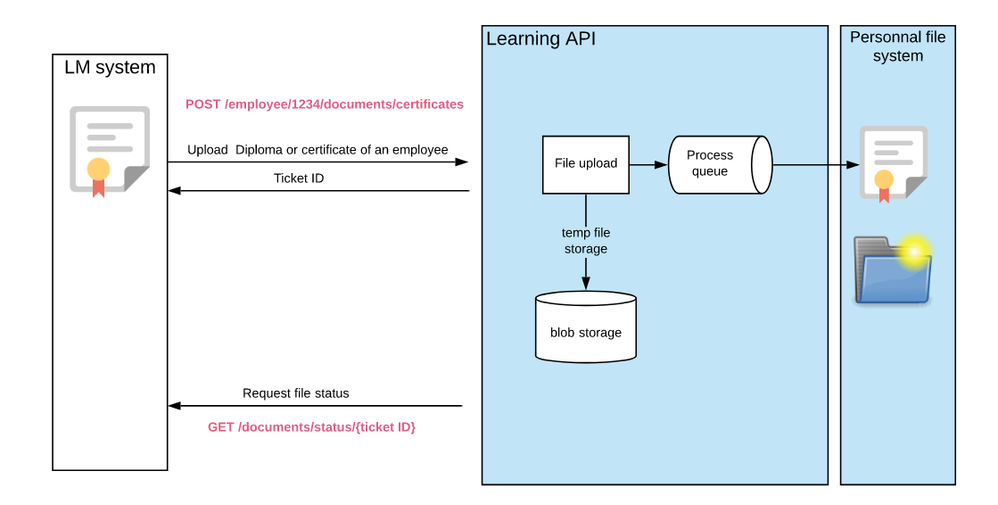

Asynchronous file upload

Learning systems can upload files, like certificates, diplomas for individual employees to the Personal File System of Visma Raet. The file upload is an a-synchronized process. After the file is uploaded the consumer will receive a ticket Id, which can be used to monitor the process of the file upload.
