WFM domain model, entiteiten en velden

[#1]

Artikel inhoud

• Domein model
• Het model
• Entiteiten en velden
• Person (Persoon)
• Employment (Dienstverband)
• SalaryDetails (Dienstverband)
• Assignments (Inzet)
• Cost allocation (Loonverdeling)
• Leave Entitlements (Verlofrechten)
• leave hours (Opgenomen verlof in uren)
• Sickleave (Ziekte algemeen, uitgezonderd zwangerschapsverlof)
• Maternity leave (ziekte zwangerschapsverlof)

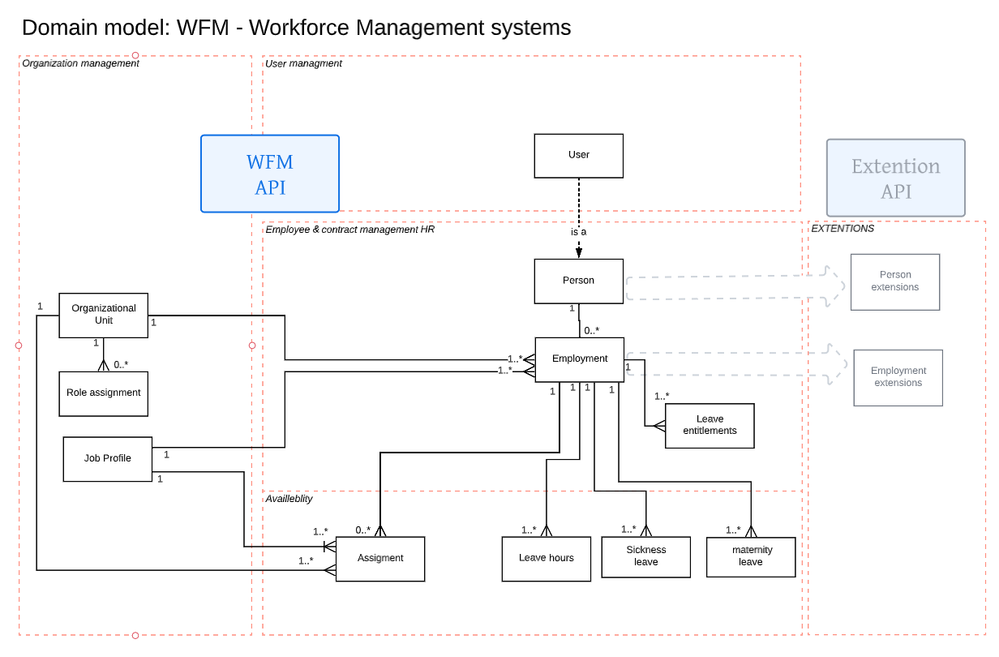

Domein model

Het model

Entiteiten en velden

Person (Persoon)

Id / personId	Technical and unique id. the Id is unique within the entity and tenant. The id is owned by the core system and can not changed by a user	P01001 - Persoonsnummer
PersonCode	The logical code or number of the employee.	P01001 - Persoonsnummer
Initials	The initials of the employee. Format depends	P00303 - Voorletters
firstNames	The official given names of the employee as stored in the HR Core system	P01002 - Voornamen
KnownAs	The name which is used by the employee as his first name	P01003 - Roepnaam
lastNameAtBirth	The last name at birth of the employee. Also known as the family name	P00301 - Geboortenaam
lastNameAtBirthPrefix	The prefix of the last name at birth	P00302 - Geboortenaam-voorvoegsels
lastName	The last which is currently used by the employee as his last name	P01008 - Samengestelde naam
lastNamePrefix	The prefix of the last name as used currently	P01009 - Samengestelde naam-voorvoegsels
nameAssembleOrder	Code of the assemble order that the core system uses for the last Name. The assemble order is depending on the core system and the logic behind it.	P00304 - Gebruik achternaam
partnerName	The partner last name	P00390 - Partner-naam
partnerNamePrefix	The prefix of the partner last name	P00391 - Partner-voorvoegsels
titlePrefix	The formal title which will be used as a prefix before the name like Doctor, Professor, et cetera	P00305 - Titulatuur voor de naam
titleSuffix	The formal title which will be used as postfix after the name like MSc or Master of Science	P03937 - Titulatuur achter de naam
gender	Gender of the person conform the ISO/IEC 5128 standard (0) Not known (1) Male (2) Female (9) Not applicable	P00330 - Geslacht M = Man / Male V = Vrouw / Female
dateOfBirth	Date of Birth	P00321 -Geboorte datum
deceased	Indicated if the employee deceased Note: most core systems have a date field. In the API this will be translated to boolean	P01005 - Datum overlijden
emailAddresses	List of the email addresses of the employee. The fields are: type like Business, Private, etc. address	Business: P01035 - E-mail adres werk Private: P01034 - E-mail adres prive
phoneNumbers	list of phone numbers of the employee type like Business, Home, Mobile, et cetera number	Home: P01027 - telefoonnr woonadres Mobile : P01036 - Telefoonnr mobiel Business :P01037 - Telefoonnr werk FaxBusiness : P01039 Faxnr werk FaxHome : P01038 Faxnr prive
Addresses	list of addresses of the employee. The address fields are: addressType like Home, Post, etc. streetName Number streetNumberAdditional postalCode city country	Home: P01014 straatnaam P01016 Huisnummer P01018 Huisnummer toev P01020 Postcode P01022 Plaatsnaam P01024 Land P01012 Adres m.i.v. Postal: P00365 straatnaam P00367 huisnummer P00368 huisnummer toev P00313 postcode P00308 plaatsnaam P00847 land P01011 Adres m.i.v.

Employment (Dienstverband)

Id / employmentId	Technical and unique id. the Id is unique within the entity and tenant. The id is generated by the system and can not changed by a user.	Object Id = "PersonCode" + ContractCode
PersonCode / PersonId	Person code to which the employment is related	P01001 - Persoonsnummer
employmentCode / ContractCode / ContractId	Code of the contract	P01101 - volgnr dienstverband
PayrollClientCode	Logical code of the payroll client. Filter option for Row Authorisation (configuration API)	P01103 Opdrachtgever
PayrollInstitutionCode	Logical code of the payroll Institution. Filter option for Row Authorisation (configuration API)	P01104 Instelling
hireDate	The hire date of the employment	P00322 - Datum in dienst
dischargeDate	The end date or discharge date of the employment. This is always an "up to and including" date. In unknown the field will not be visible in the API	P00830 - Datum uit dienst
originalHireDate	The first hire date of original hire date of an employee within the organization. This date is important for the tenure or working anniversary of an employee	P00834 -Datum in dienst CAO
employmentType	Type of employment like Internal employee, contractor, "Wachtgelder" Filter option for Row Authorisation (configuration API)	P01102 - Soort arbeidsrelatie
contractType	Type of the contact like indefinite period ('Onbepaalde tijd') or given time ('bepaalde tijd')	P08259 - Code contract (on)bepaalde tijd
jobProfile	Official job title or job profile of the employment. The Job profile contains the following details: shortName: Code or short name of the job profile	P01107 - Primaire functie
classification	group or classification of the employment. Generic field Filter option for Row Authorisation (configuration API)	P01110 - Code doelgroep
organizationUnit	organization unit Id of employment. The Id is a reference to the entity org units	P01106 - Hierarchische org. eenheid
workingAmount	Work amount of employment. amountOfWork: the amount of work unitOfWork: Unit of work that specifies the amount of work like "hours", "days", et cetera periodOfWork: Period of work like "week" or "month" parttimePercentage	P01109 - Uren per week P00404 percentage deelbetrekking

SalaryDetails (Dienstverband)

Id	Technical and unique id. the Id is unique within the entity and tenant. The id is generated by the system and can not changed by a user.
PersonCode	Person code to which the employment is related	P01001 - Persoonsnummer
employmentCode	Code of the employment	P01101 - volgnr dienstverband
GENERAL
typePaidWorkerCode	type of paid or unpaid worker	P00332 Code soort loner
SALARY DETAILS
payrollSchemeCode	payroll scheme related to the collective agreement	P00314 Code salarisregeling
payrollScale	Salary scale	P01151 Salaris
payrollSeniority	Salary step or seniority within the salary scale	P00326 Ancienniteit salaris
payrollAmountNo	salary amount number	P01152 Inpassingsnr salaris
GARANTEED SALARY DETAILS
GuaranteedPayrollScale	Garanteed salary scale.	P01157 Garantieschaal nummer
GuaranteedSeniority	Garanteed step or seniority within the garanteed scale	P01158 Ancienniteit garantieschaal
GuaranteedPayrollAmountNo	salary amount number	P00318 garantie salaris
CALCULATED SALARY DETAILS
CalculatedSalary	calculated gross salary by Beaufort	P01161 Berekend bruto salaris
CalculatedHourlySalary	calculated gross hourly salary by Beaufort	P01162 Berekend bruto uurloon
CalculatedGuaranteedSalary	calculated gross garanteed salary by Beaufort	P01159 Berekend garantiesalaris
CalculatedGuaranteedHourlySalary	calculated gross garanteed hourly salary by Beaufort	P01160 Berekend garantie uurloon

Assignments (Inzet)

assignmentID	Technical and unique id. the Id is unique within the entity and tenant. The id is generated by the system and can not changed by a user.
PersonCode / PersonId	Person code to which the employment is related	P01001 - Persoonsnummer
employmentCode / ContractCode / ContractId	Code of the contract	P01101 - volgnr dienstverband
startDate/validFrom	The date when the assignments start	P01125 - Ingang inzet
endDate/ValidUntil	The end date of the assignment. This is always an "up to and including" date. In unknown the field will not be visible in the API	P01126 - Einde inzet
jobProfile	Job title or job profile of the assignment. The Job profile contains the following details: shortName: Code or short name of the job profile	P01122 - Operationele functie
organizationUnit	Organization unit id of the assignment. The Organization Unit Id is a reference tot the organization unit entity	P01121 - Operationele org. eenheid
workingAmount	work amount of the assignment. amountOfWork: the amount of work unitOfWork : Unit of work that specifies the amount of work like "hours", "days", et cetera periodOfWork: Period of work like "week" or "month"	P01124 - Uren inzet per week
costCenter	the cost center of the Assignment	P01128 - Kostenplaats Inzet
costUnit	the cost unit of the Assignment	P01129 - Kostendrager Inzet
costType	the cost type of the Assignment	P01127 - Kostensoort Inzet
type	Type of assignment	P01123 - Soort Inzet

Cost allocation (Loonverdeling)

API Field	Description (English)	Beaufort field	Example
id	Technical and unique id. the Id is unique within the entity and tenant.		1000 1 0
PersonCode	Person code to which the employment is related	P01001 - Persoonsnummer	1000
employmentCode	Code of the contract	P01101 - volgnr dienstverband	1
sequenceNumber	Row number or sequence number or the cost allocation within the employee	P01131 - regelnr loonverdeling	0
costCenter	the cost center of the cost allocation row	P01134 - Kostenplaats loonverdeling	10000 - administratie
costUnit	the cost unit of the cost allocation row	P01135 - Kostendrager loonverdeling	10000 - Aministratie
costType	the cost type of the cost allocation row	P01133 - Kostensoort loonverdeling	41300 - Afdelingshoofd
percentage	Percentage of the cost allocation row	P01132 - Percentage loonverdeling	100

Leave Entitlements (Verlofrechten)

id	Technical and unique id. the Id is unique within the entity and tenant.	object id
PersonCode	Person code to which the employment is related	Persoonsnummer
employmentCode	Code of the contract	volgnr dienstverband
leaveType	leave type code, like WET for legal	P01430 code verlofsoort werknemer
leaveEntitlementYear	Year of the Leave entitlement	P01440 verlofjaar verlofrechten
leaveEntitlementLastYear	leave entitlement last year	P01442 verlofrecht vorig jaar in uren
leaveEntitlementThisYear	leave entitlement this year	P01443 verlofrecht huidig jaar in uren

leave hours (Opgenomen verlof in uren)

id	Technical and unique id. the Id is unique within the entity and tenant.
PersonCode	Person code to which the employment is related	Persoonsnummer
employmentCode	Code of the contract	volgnr dienstverband
leaveEntitlementYear	Year of the Leave entitlement	P01466 - verlofjaar verlofrecht
leaveType	leave type code, like WET for legal	P01465 - code verlofsoort
leaveSequence	leave request Id	P01460 - Volgnummer verloftijdvak
leaveDate	leave date	P01470 - Datum verlof
leaveHours	hours leave on specific leave	P01471 - uren verlof

Sickleave (Ziekte algemeen, uitgezonderd zwangerschapsverlof)

id	Technical and unique id of the sickness case. The Id is unique within the entity and tenant.
PersonCode	Person code to which the employment is related	Persoonsnummer
employmentCode	Code of the contract	volgnr dienstverband
startDate	first day of the sickness of the employee	P01600 Datum eerste ao-dag
recoveryDate	recovery date or first working day of the employee	P01606 Datum herstel
expectedRecoveryDate	Expected recovery date	P01605 Datum verwacht herstel toevoegen
Partial recovery
periodId	technical id of the partial recovery period
periodStartDate	The start date from which the new Illness percentages is valid	P01640 - Ziektetijdvak vanaf
percentage	The percentages the employee is still sick. the percentage is always related to the total amount of working hours of the employee itself	P01642 - Percentage ziek

Maternity leave (ziekte zwangerschapsverlof)

id	Technical and unique id of the Maternity leave. The Id is unique within the entity and tenant.
PersonCode	Person code to which the employment is related	Persoonsnummer
employmentCode	Code of the contract	volgnr dienstverband
startDate	first day of the maternity leave of the employee	P01600 Datum eerste ao-dag
recoveryDate	recovery date or first working day of the employee	P01606 Datum herstel
